The world’s leading technology, mature technology, stable operation, low maintenance cost, low unit energy consumption, flexible selection of grinding media and liners, high-purity processing, concentrated product size distribution and customizable solutions.
Product description
The world’s leading technology, mature technology, stable operation, low maintenance cost, low unit energy consumption, flexible selection of grinding media and liners, high-purity processing, concentrated product size distribution and customizable solutions.
Performance characteristics
Large-scale, intelligent, energy-saving, low-carbon, and environmentally friendly are the missions and responsibilities that the times have given us.
1. Reasonable process design, low energy consumption per unit, large output.
2. PLC control, easy to operate.
3. Safe and stable operation and low maintenance cost.
4. Flexible choice of grinding media and liners.
5. Low contamination of materials with high purity.
6. The product produced has a concentrated particle size distribution and stable product quality.
Working principle
Source of Technology
Germany technology, international standard non-metallic minerals production line.
Technical Process

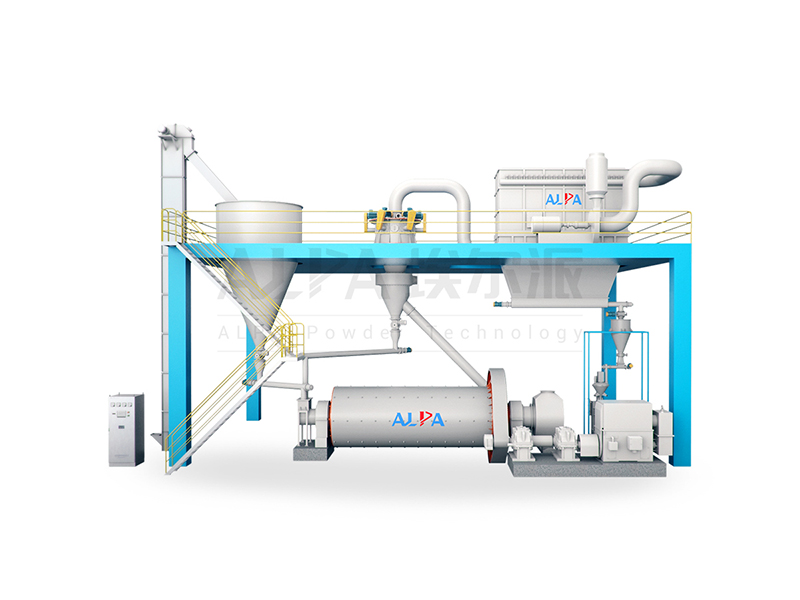

The process mainly includes crushing(generally use two stages of crushing), grinding, classifying, package, magnetic separation, transportation, lifting etc. In conjunction with several classifiers in parallel or series, several different products can be obtained at the same time.
Ball Mill
Special design to ball mill which will be selected on the basis of material’s hardness, grindability index, final particle size and capacity. The shape of the lining and the ball (segment) are tailored according to years of engineering practice experience to maximize the grinding efficiency of the ball mill and reduce the energy consumption.
Classifier
Different models of Classifier could be selected depending on different fineness of products. FW series Classifier are suitable for classifying of D97：3～20μm products, FL series for classifying of D97: 8～45μm products. Wide range of adjustment is available with each Classifier and the application is extensive in market.
Flexible control of product particle size
The production line are designed and optimized to match with several classifier in series, the particle size can be controlled, and several products can be obtained at once, low energy consumption, free from over-crushing.
Low noise and emission
Environment protection design to the vibration damper, component soft connection and filter bag result in lowering noise and dust.
Automatic Control
The electric control system employs programmed control for the entire process from feeding, classifying and grinding to packing.
Personalized customization
According to the customer’s investment scale, we can design different plant structures and equipment layout schemes to provide the most cost-effective configuration system. For example, the equipment layout with an annual output of less than 20,000 tons is mostly arranged in a single-storey factory layout, and the conveying system adopts spiral conveying. The equipment layout of the scale of more than 20,000 tons adopts the multi-layer factory three-dimensional arrangement, the conveying system adopts pneumatic conveying, and the packaging adopts automatic packaging and equipped with palletizing system.
Provide value-added services
Add-on services to customer such as mineral processing, modification, granulation and equipment upgrading.
Technical parameter
