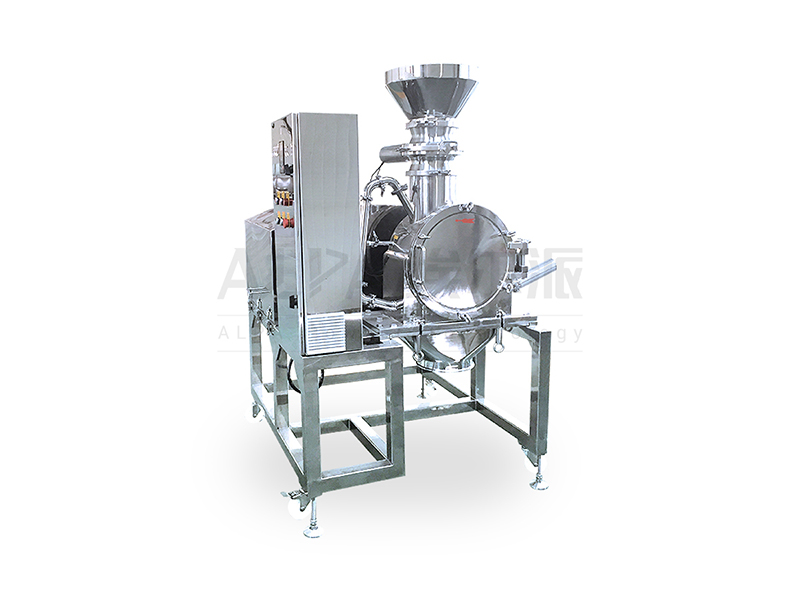

Ultra Fine Hammer Mill

The hammer blade installed on the rotor will rotate at high speed inside the hammer mill to crush and grind the material. By adjusting the rotation speed of the hammer and the size of the screen aperture, the grinding particle size of the material is controlled.

• Available D50:10～850μm.
• Sieve hole size 0.2mm-3mm.
• Compact structure and small occupation, easy to disassemble and clean.
• Lower installation power, wide application, high cost-performance.
• Different installation combinations, applicable to different process requirements.
• Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
• PLC control system, easy operation.
• The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
• Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials.
• High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials.
• Explosion-proof design can be selected to meet the ultra-fine grinding processing requirements of flammable, explosive and oxidizing materials;
• The design of high temperature, low temperature and normal temperature can be selected, with airtight circulation and inert gas circulation to meet the requirements of crushing temperature of different materials.

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating disc. At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material. The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.
